Single Gas Clip

Part# SGC-O / SGC-H / SGC-C

Tough!

Whether it’s the hottest or the coldest environment, our Single Gas Clip is designed and tested to provide worker safety in the harshest working conditions.

Easy to own and operate.

At Gas Clip Technologies, we use the latest technology to enhance customer safety. We quality test 100% of our detectors, not just a random sample. That’s why we can offer a low cost of ownership. There are no hidden service charges, just reliable detectors that will help your facility workers and contractors do their jobs safely, productively and cost effectively.

Unmatched safety, reliability and productivity

For unmatched safety, reliability and productivity, choose the world’s most advanced single gas detector, the Single Gas Clip.

Be sure to compare these features to our Multi Gas Clip and Single Gas Clip Plus to find the right product for your current application.

Sold through distributors worldwide.

Features

Unmatched sensor reliability for hydrogen sulfide , carbon monoxide , or oxygen
Adjustable alarm set points
Real-time gas reading capability
0.1 ppm resolution for H₂S sensor and display
Two-way IR communication for event downloads, bump tests, detector configuration and firmware updates
Programmable unique 6 digit detector identification
Bump Test notification and confirmation when intervals are set
Simple one button operation
Calibration notification and confirmation when intervals are set
Docking capability with Gas Clip Technologies SGC Dock

Data Sheets

SGC - SGC Plus Datasheet v2.00

Manual

SGC Manual - English v3.02

Software / Firmware

*GCT IR Link Software v2.0.71 (2024-01-09)

*System Requirements: Microsoft Supported Windows Platforms

**SGC Firmware v5.1 (2014-10-06)

**Firmware cannot be installed on a PC. Download, then upload to the detector or dock.

Videos

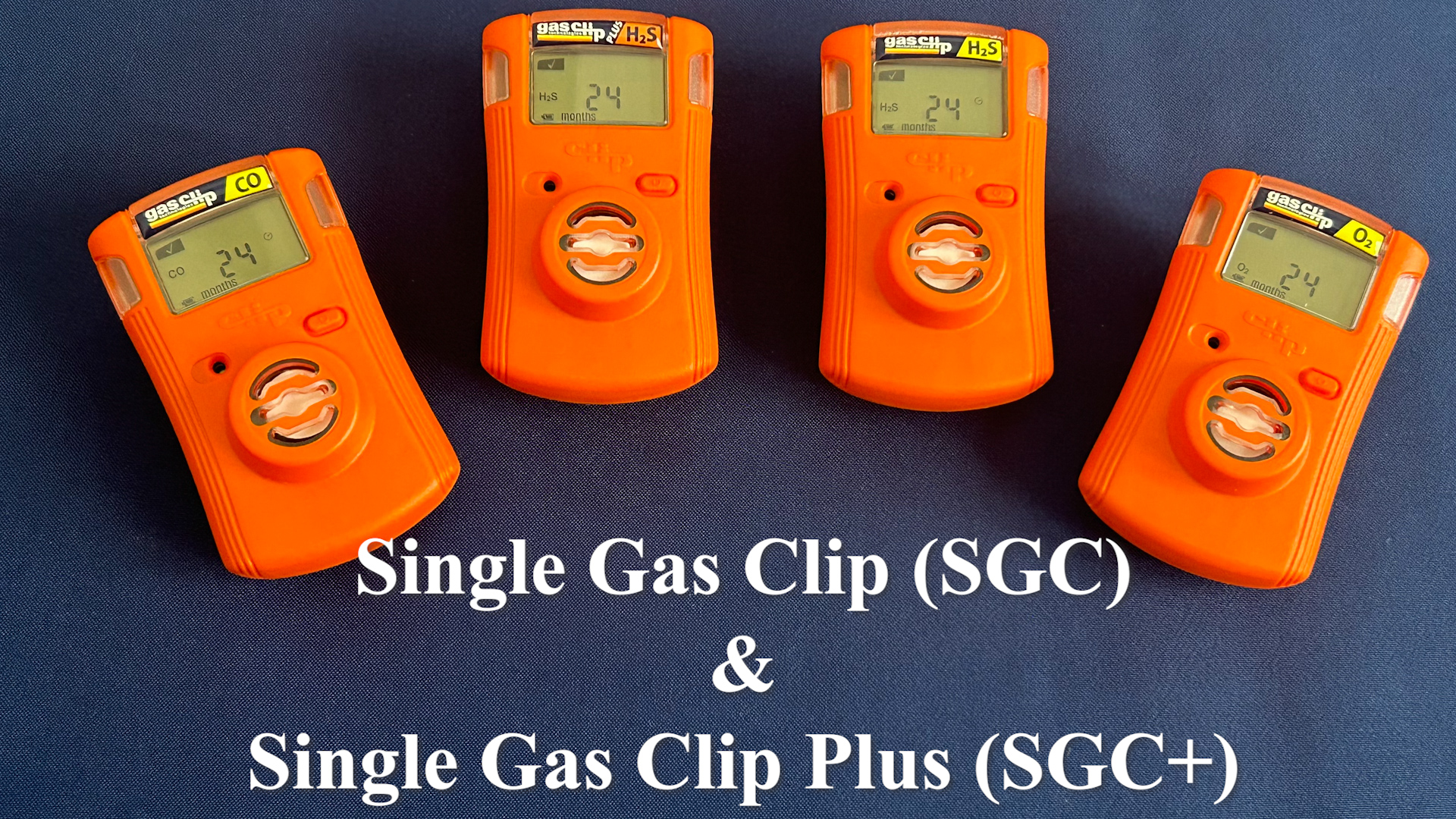

SGC & SGC Plus Product Video

Accessories

Detector(s) sold Separately.

External Pump

Part#: GCT-XP

The External Pump gives any Gas Clip diffusion detector the ability to take remote samples from up to 75 feet away, drawing air at greater than one foot per second, and comes with a two-year warranty.

Detector(s) sold Separately.

SGC Dock

Part#: SGC-DOCK

Testing dock in portable with gas compartment, regulator, gauge, dock charger & USB memory (for use with SGC & SGC PLUS)

Detector(s) sold Separately.

SGC Wall Mount Dock

Part#: SGC-WMDOCK

Testing dock in portable with gas compartment, regulator, gauge, dock charger & USB memory (for use with SGC & SGC PLUS)

Detector(s) sold Separately.

Manual Regulator (non-dock use)

Part#: REG-MANUAL

Manual Regulator (non-dock use) use with all GCT detectors except MGC Pumps

GCT IR Link GCT IR Link linked to SGC detector

*System Requirements: Microsoft Supported Windows Platforms

Detector(s) sold Separately.

GCT IR LINK communication module with USB cable

Part#: GCT-IR-LINK

GCT IR LINK communication module with USB cable (for use with all GCT detectors)

Pictured linked to an SGC detector.

You can use any calibration gas cylinder as long as it has a C-10 connector.

Single Gas Cylinder - H₂S

Part#: SGC-H2S-58 / SGC-H2S-116

Single Gas Cylinder - H₂S - contains 25ppm H₂S/N₂ - Available in 58L or 116L

You can use any calibration gas cylinder as long as it has a C-10 connector.

Single Gas Cylinder - CO

Part#: SGC-CO-58 / SGC-CO-116

Single Gas Cylinder - CO - contains 100 ppm CO/Air - Available in 58L or 116L

You can use any calibration gas cylinder as long as it has a C-10 connector.

Single Gas Cylinder - O₂

Part#: SGC-O2-58

Single Gas Cylinder - O₂ - contains 18% O₂.Available in 58L only

Spares and Replacement Parts

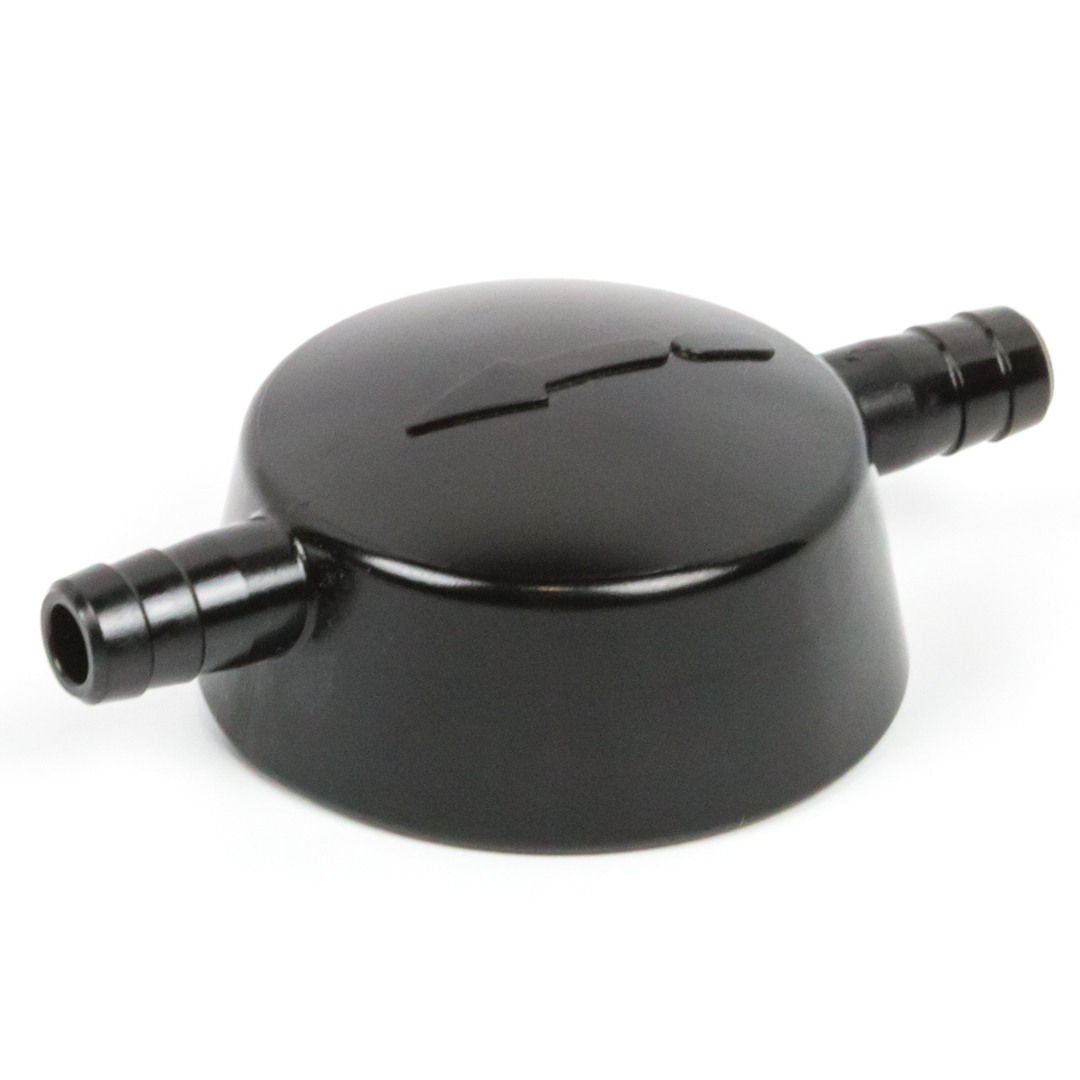

Calibration Cap

Part#: SGC-CALCAP

Calibration Cap replacement (for use with SGC & SGC PLUS)

Alligator Clip

Part#: AL-CLIP

Alligator Clip replacement (includes screw)
(For use with all GCT Detectors)

Detector(s) sold Separately.

Filter replacements
10-Pack

Part#: FILTER-10

Filter replacements - 10-Pack (for use with SGC, SGC PLUS, MGC & MGC-P)

Detector(s) sold Separately.

Filter replacements
50-Pack

Part#: FILTER-50

Filter replacements - 50-Pack (for use with SGC, SGC PLUS, MGC & MGC-P)

GCT IR Link
USB Cable

Part#: GCT-IR-CABLE

GCT IR Link USB Cable

Dock not included.

Dock Charger replacement

Part#: DOCK-CHARGER

Dock charger replacement - std. 110v power supply (for all GCT Clip Docks)
