Battery life for months instead of hours!

Day in, day out, your workers have to charge their portable multi gas detectors so they can keep testing for the presence of hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and combustible gases (LEL). Unfortunately, sometimes they may forget to do so. Gas Clip Technologies can help prevent this safety risk with our new Multi Gas Clip (MGC).

The new MGC can go a full 2 months without a charge, even without ever having to be turned off. Shut down the detector nightly and the battery can last up to 4 months.

How is this accomplished?

What’s the secret of the MGC’s extended battery life? It uses low-power photo-metric technology for the detection of the combustible gases (LEL). Instead of draining the battery with archaic pellistor technology, the MGC uses an IR source. This conserves power, so the battery lasts and lasts and lasts.

What about calibration?

The MGC also eliminates the need to frequently calibrate portable gas detectors. It can go 12 months without being calibrated. That saves time and increases efficiency.

Sold through distributors worldwide.

Features

• 2 month battery life (continuous run time)
• 1 year calibration cycle
• Will work in inert environments, no need for oxygen
• Simple to use
• Bump/Calibration reminders
• Docking station compatible
• Programmable user ID

Data Sheets

MGC IR Datasheet v4

Quick Start Guide

MGC Quick Start Guide V2.05

Manual

MGC Manual v2.14

Software / Firmware

*GCT IR Link Software v2.0.71 (2024-01-09)

*System Requirements: Microsoft Supported Windows Platforms

**MGC Firmware v1.0.40 (2019-06-06)

**Firmware cannot be installed on a PC. Download, then upload to the detector or dock.

Videos

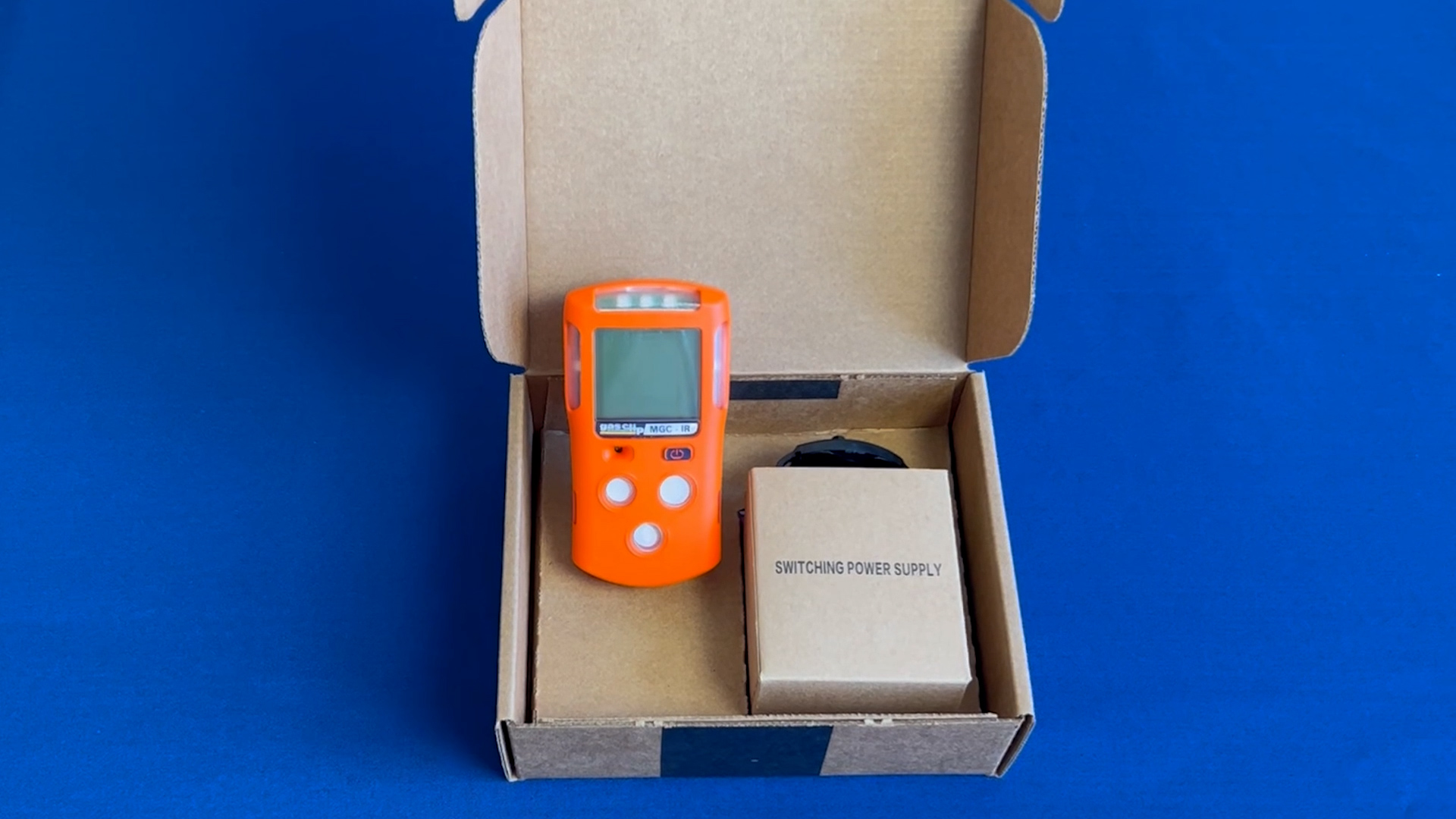

MGC Product Video

Accessories

Detector(s) sold Separately.

External Pump

Part#: GCT-XP

The External Pump gives any Gas Clip diffusion detector the ability to take remote samples from up to 75 feet away, drawing air at greater than one foot per second, and comes with a two-year warranty.

*System Requirements: Microsoft Supported Windows Platforms

Detector(s) sold Separately.

GCT IR LINK communication module with USB cable

Part#: GCT-IR-LINK

GCT IR LINK communication module with USB cable (for use with all GCT detectors)

Pictured linked to an MGC detector

Detector(s) sold Separately.

Pump sold separately.

MGC Charger

Part#: MGC-CHARGER

MGC Charger replacement - 110v AC Adapter (for use with Multi Gas Clip Infrared & MGC Pump Infrared)

Detector(s) sold Separately.

Pump sold separately.

MGC Vehicle Charger

Part#: MGC-CHARGER-V

MGC Vehicle Charger – 12v DC Adapter to use with Multi Gas Clip, MGC Pump and the External Pump

Detector(s) sold Separately.

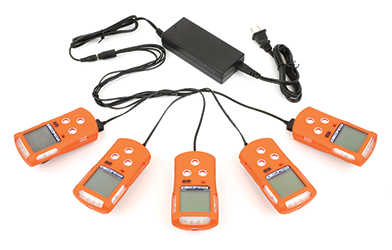

MGC Multi Charger

Part#: MGC-CHARGER-MULTI

MGC Vehicle Charger – 12v DC Adapter to use with Multi Gas Clip (Infrared), MGC Pump (Infrared) and the External Pump

Detector(s) sold Separately.

MGC Dock

Part#: MGC-DOCK

The Multi Gas Clip Dock is the perfect solution to bump test or calibrate up to 4 detectors at once.

Detector(s) sold Separately.

MGC Wall Mount Dock

Part#: MGC-WMDOCK

Multi Gas Clip Wall Mount Dock
The Multi Gas Clip Wall Mount Dock is the perfect solution to bump test or calibrate up to 4 detectors at once.

Detector(s) sold Separately.

Multi Gas Clip High Pressure

Part#: MGC-DOCK-HP

Testing dock in portable with regulator, gauge, dock charger & USB memory plus high pressure regulator & hose (for use with MGC Infrared)

Detector(s) sold Separately.

Multi Gas Clip Dock Wall Mount High Pressure

Part#: MGC-WMDOCK-HP

Testing dock in metal with regulator, gauge, dock charger & USB memory plus high pressure regulator & hose (for use with MGC Infrared)

Dock High Pressure Conversion

Part#: DOCK-REGCONV-HP

Conversion of any standard GCT Clip Dock to High Pressure (for all GCT Clip Docks - GCT labor included)

Detector(s) sold Separately.

You can use any calibration gas cylinder as long as it has a C-10 connector.

Confined Space Kit

Part#: GCT-CSK

Hard sided carrying with foam insert, 1' sampling probe, air stone particulate filter, 10' sampling hose, hand aspirator pump, 3' calibration/test hose, calibration caps (Multi Gas Clip & MGC Simple/Simple Plus), 0.5lpm regulator and GCT IR LINK.

Detector(s) sold Separately.

You can use any calibration gas cylinder as long as it has a C-10 connector.

Confined Space Kit with 58L Quad Gas

Part#: GCT-CSK-GAS

Hard sided carrying with foam insert, 58L quad gas cylinder (25 ppm H2S, 100 ppm CO, 18% O2 & 50% LEL), 1' sampling probe, air stone particulate filter, 10' sampling hose, hand aspirator pump, 3' calibration/test hose, calibration caps (Multi Gas Clip & MGC Simple/Simple Plus), 0.5lpm regulator and GCT IR LINK.

Detector(s) sold Separately.

Hand Aspirator Kit

Part#: GCT-HAK

Hand Aspirator Kit- Probe, Stone Filter, Sampling Hose, Bulb & Calibration Caps (use with Multi Gas Clip, MGC Simple & MGC Simple Plus)

Detector(s) sold Separately.

Remote Sampling Probe - 1ft.

Part#: PROBE-1

Remote Sampling Probe - 1 ft.

You can use any calibration gas cylinder as long as it has a C-10 connector.

Quad Gas Cylinder

Part#: MGC-Q-58 / MGC-Q-116

Contains 25 ppm H₂S,
100 ppm CO,
18% O₂,
& 50% LEL (2.5% vol Methane.)
AVAILABLE in 58L or 116L

Detector(s) sold Separately.

Manual Regulator (non-dock use)

Part#: REG-MANUAL

Manual Regulator (non-dock use) use with all GCT detectors except MGC Pumps

Detector(s) sold Separately.

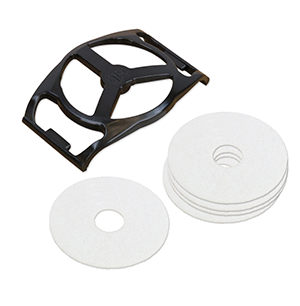

MGC External Dust Filter Cap plus 5 filters

Part#: MGC-X-FILTER-KIT

MGC External Dust Filter Cap plus 5 filters.

Spares and Replacement Parts

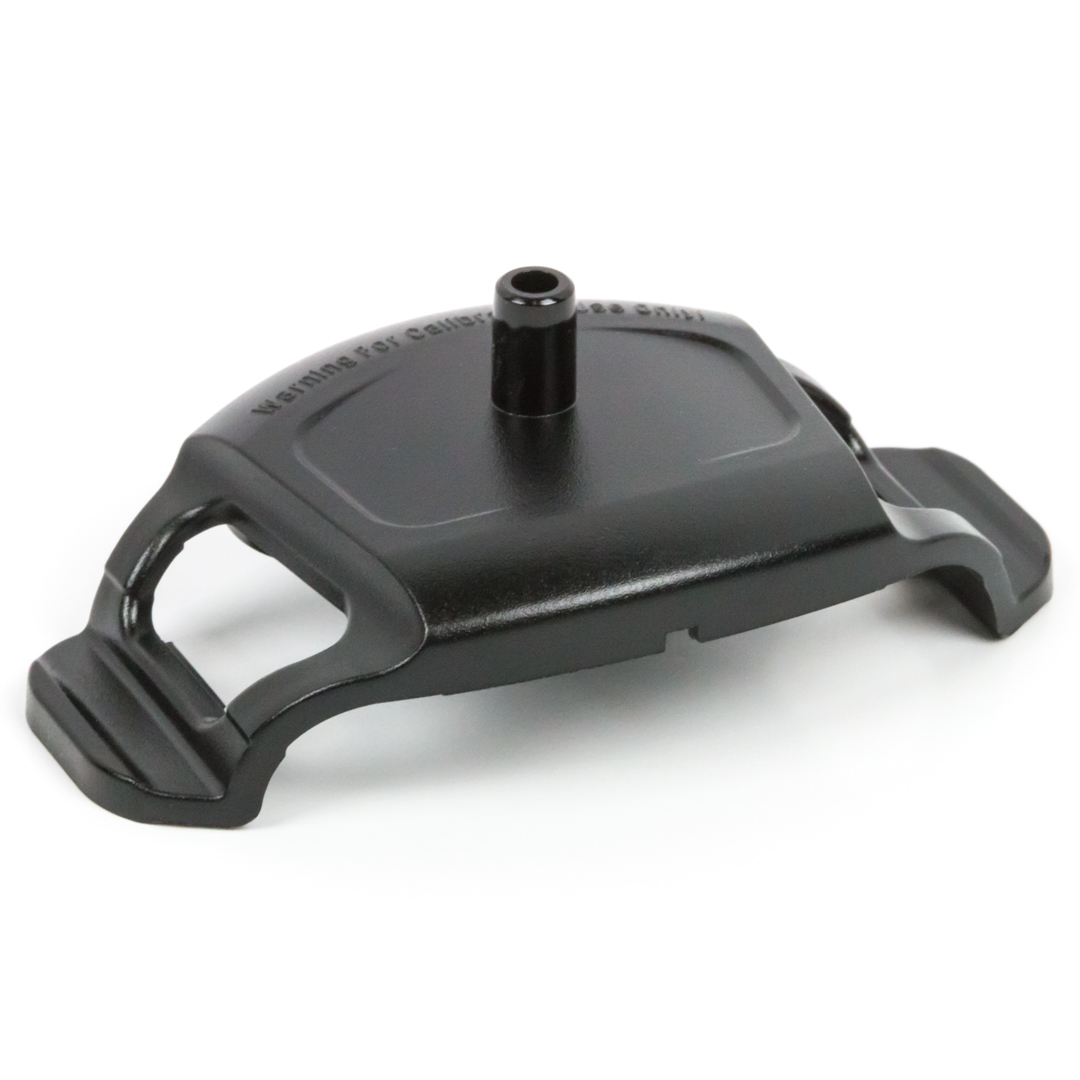

Calibration Cap

Part#: MGC-CALCAP

Multi Gas Clip replacement (for use with MGC Infrared)

Calibration Hose 3 ft.

Part#: HOSE-3

Calibration Hose - 3 ft. Tygon ID-1/8" (3.18 mm), OD-1/4" (6.35 mm), Wall-1/16" (1.59 mm)

Alligator Clip

Part#: AL-CLIP

Alligator Clip replacement (includes screw)
(For use with all GCT Detectors)

Detector(s) sold Separately.

Filter replacements
10-Pack

Part#: FILTER-10

Filter replacements - 10-Pack (for use with SGC, SGC PLUS, MGC & MGC-P)

Detector(s) sold Separately.

Filter replacements
50-Pack

Part#: FILTER-50

Filter replacements - 50-Pack (for use with SGC, SGC PLUS, MGC & MGC-P)

Detector(s) sold Separately.

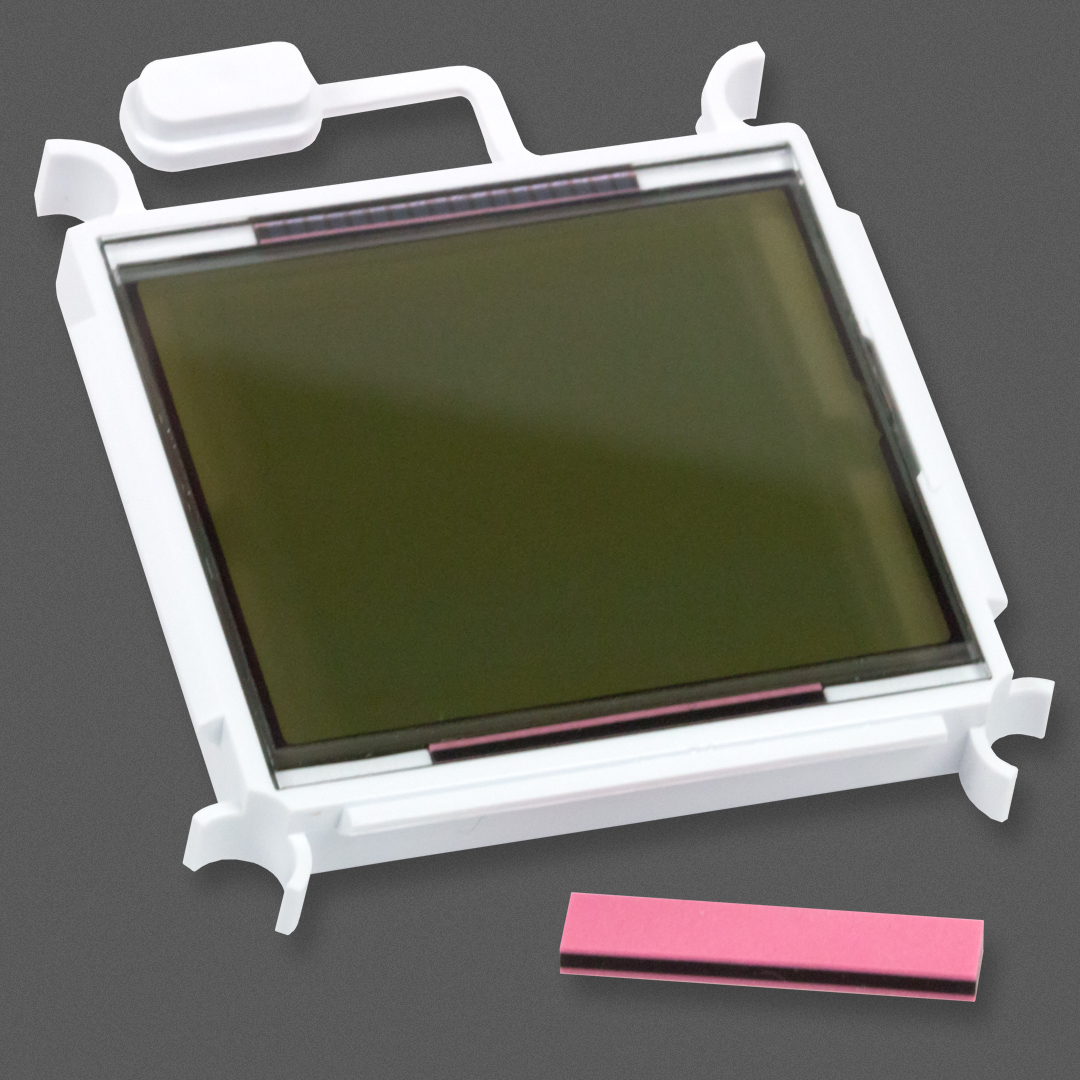

LCD Screen Kit for MGC Infrared

Part#: MGC-LCD

LCD Screen Kit for MGC Infrared

Detector(s) sold Separately.

MGC LEL Pellistor Sensor

Part#: MGC-SE-LEL-P

MGC LEL Replacement Sensor (Pellistor)

Detector(s) sold Separately.

Sensor - LEL Replacement (infrared)

Part#: MGC-SE-LEL-IR

Sensor - LEL Replacement (infrared) for MGC Infrared & MGC Pump Infrared

Detector(s) sold Separately.

Sensor - O₂ replacement

Part#: MGC-SE-O2

Sensor - O₂ replacement for MGC Infrared

Detector(s) sold Separately.

Sensor - H2S & CO Replacement

Part#: MGC-SE-4DT

MGC H2S & CO replacement (Dual-Tox) for all MGCs & MGC Pumps

Detector(s) sold Separately.

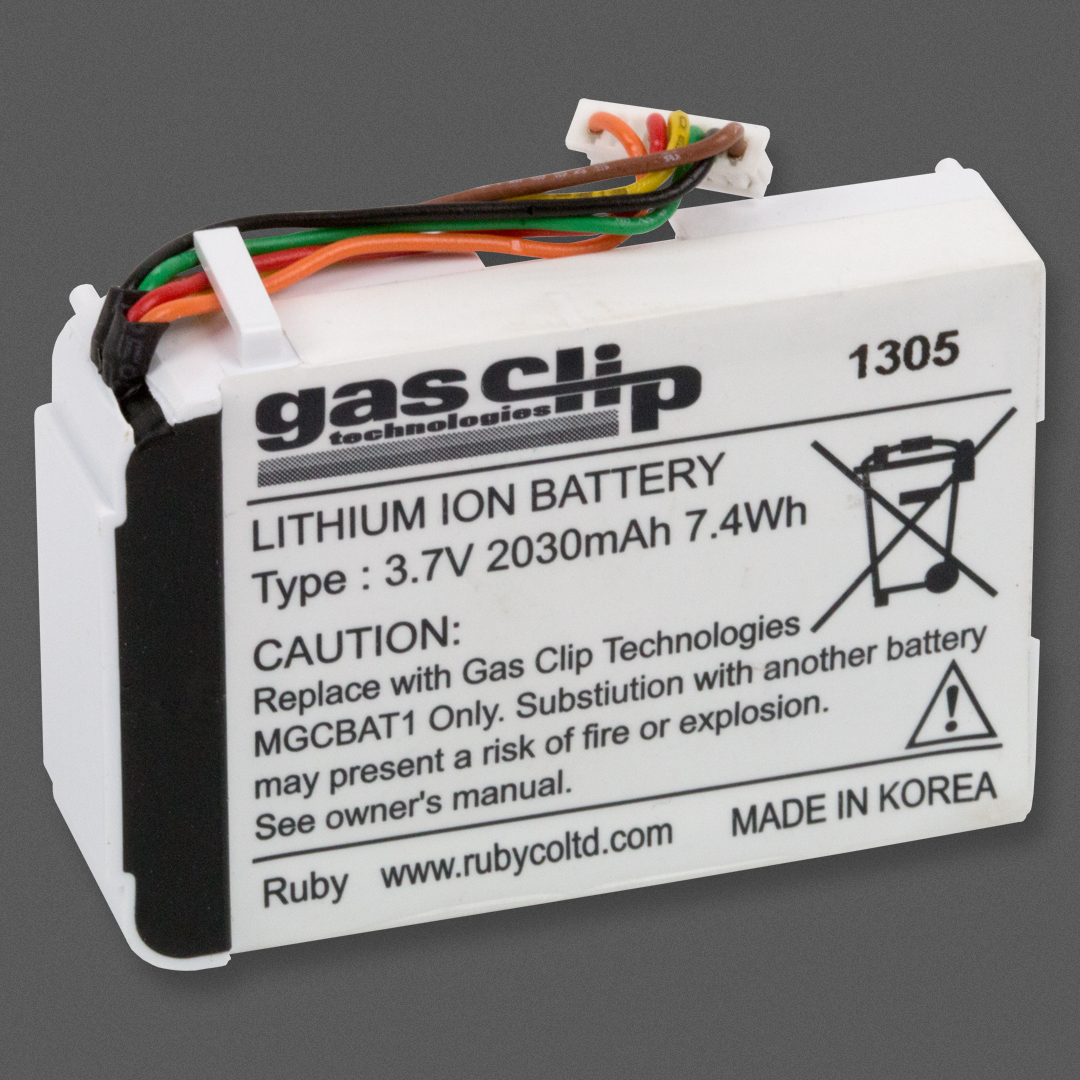

MGC Battery

Part#: MGC-BAT

MGC Battery Assembly

GCT IR Link
USB Cable

Part#: GCT-IR-CABLE

GCT IR Link USB Cable

Detector(s) sold Separately.

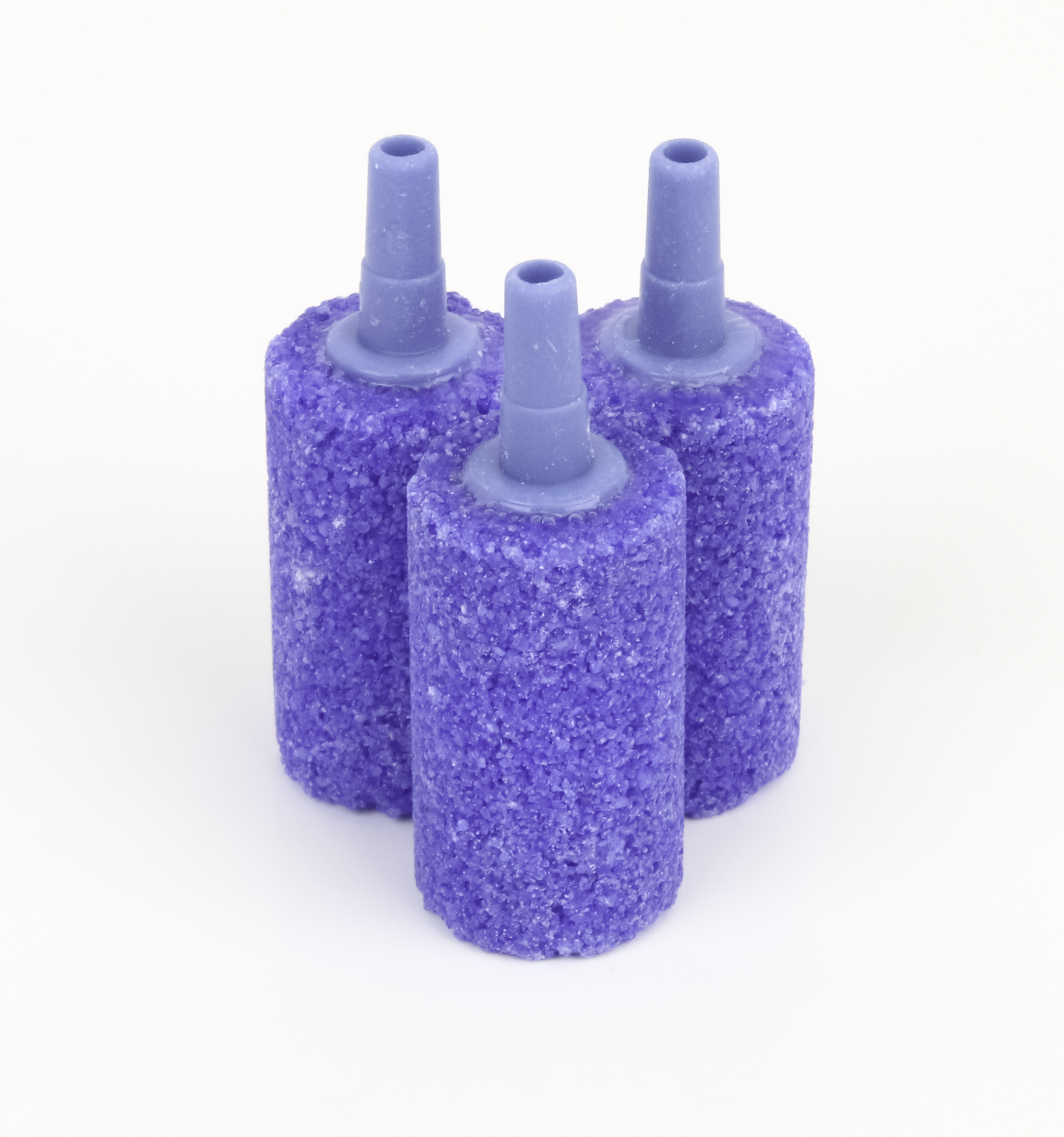

Air Stone Particulate Filters
3-pack

Part#: P-FILTER-3

Air Stone Particulate Filters 3-Pack

Dock not included.

Dock Charger replacement

Part#: DOCK-CHARGER

Dock charger replacement - std. 110v power supply (for all GCT Clip Docks)

Detector(s) sold Separately.

Remote Sampling Probe
Filters & Gasket Replacement Set

Part#: PROBE-RF

Remote Sampling Probe Filter & Gasket Replacement Set

Detector(s) sold Separately.

Remote Sampling Probe In-Line Water Trap Filter replacement

Part#: MGC-WT

Remote Sampling Probe In-Line Water Trap Filter replacement
